SPA 118 X 1 Groove Pilot Bore V & Wedge Belt Pulley

filler

Price:
Sale price
£24.54

VAT included

Stock:
In stock
 More payment options

Description

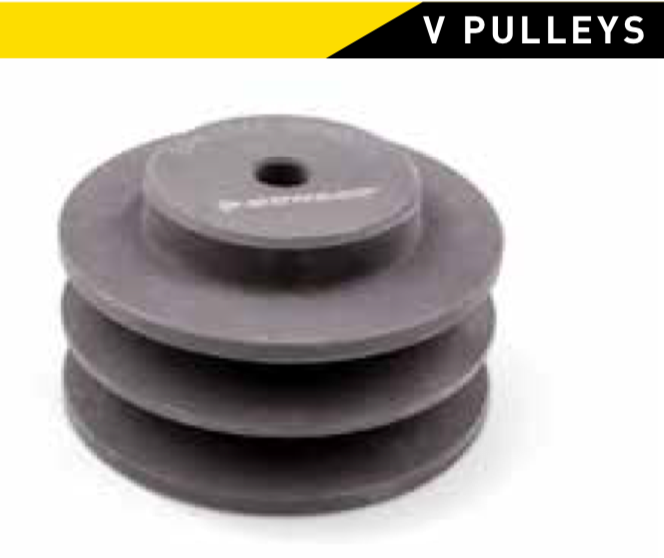

Pilot Bore V & Wedge Belt Pulley

V-pulleys are manufactured from cast iron EN-GJL-200 UNI EN1561 and are black phosphated according to ISO 4183 and DIN 2211-3 norms. All pulleys are statically balanced for peripheral speeds up to 35 m/sec.

V-Pulleys are available to suit all V & wedge belts cross sections Z, A, B, C, SPZ, SPA, SPB & SPC and are available from stock in both taper and pilot bore options.

Part numbers are identi ed by 3 letters (e.g. SPA) which represents the belt cross section, a 3 or 4 digit number (e.g. 250) the pulleys pitch diameter and a 1 or 2 digit number (e.g. 3) the number of grooves/belts to be run in the drive, for example SPA250/3.

Measuring a belt isn't actually as hard as you may think, first thing we need to work out is what type of belt it is.



V & Wedge Belts - V & Wedge Belts are available wrapped (also known as envelope), raw edge cogged (REC), banded (side by side) and double sided (Hexagonal).

Information required for identification;

  • Any part number or brand on the belt?

  • Cross section (top width x depth)?

  • The inside length in mm?

  • Plain wrapped profile or raw edge cogged (teeth)?

  • Colour?



Timing Belts - Timing belts are available in both metric and imperial pitch sizes and a range of varying widths, in both rubber and polyurethane materials.

Information required for identification;

  • Any part number or brand on the belt?

  • Pitch of the belt (the distance between the centre of one tooth to the centre

    of next tooth)?

  • The inside length in mm?

  • The width of the belt?

  • How many teeth on the belt?

  • Colour?



Ribbed Belts - Micro V-belts, (also known as Poly-V belts) are a at belt with grooves running the full length of the belt.

Information required for identification;

  • Any part number or brand on the belt?

  • Cross section (top width x depth)?

  • The inside length in mm?

  • Number of V’s.



We Can Help

 We always welcome customers to email or call for any help on the above, we enjoy interacting a helping customer wherever we can!
